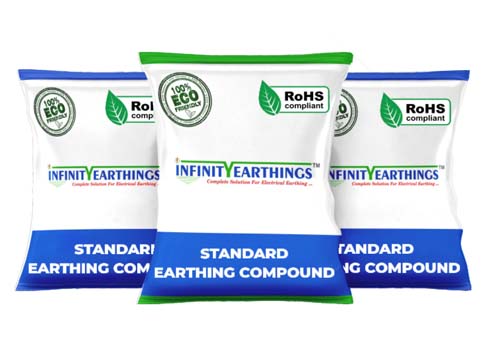

Standard Earthing Compound

• Enhances the conductivity of the soil
• Good moisture absorption and retaining capacity for long period
• Continuous resistance against corrosion
• Electronically conductive so that it provided a normalized soil conductivity
• Tested and Certified for the product performance on the basis of 2011/65/EU. Restriction of Hazardous Substances (ROHS-2) ecofriendly certification

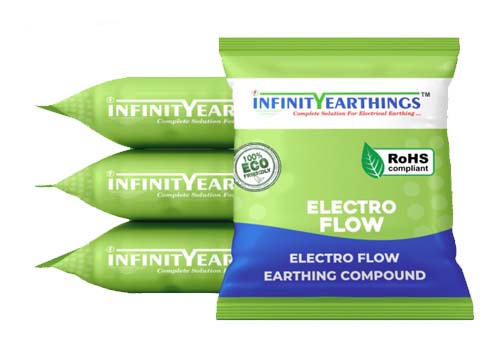

Electro Flow Earthing Compound

• Suitable in area where the soil resistivity is considerably higher
• Electro flow is an electrolyte powered with electronically energizing properties
• Increase conductivity and life of earthing system specially developed for relatively dry conditions.
• Does not contain any hazardous chemicals
• Tested and Certified for the product performance on the basis of 2011/65/EU. Restriction of Hazardous Substances (ROHS-2) ecofriendly certification

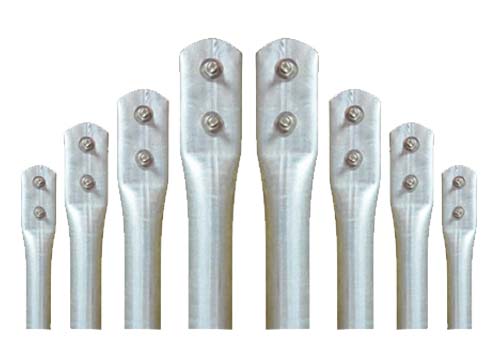

GI (Galvanized Pipe) Earthing Electrodes

GI Electrodes ISI Certified made od iron pipes manufactured pipes GI earthing electrodes are manufactured with ISI certified iron pipes. These pipes are given 100 - 150 microns zinc coating by hot dipping process.

GI Electrodes are long lasting becasue it contains nn corrosive minarals. Mostly used in industrial earthing, generator earthing installation, transformer neutral earthing and lightning arrestor earthing.

Available for Pipe in Pipe Earthing Electrodes

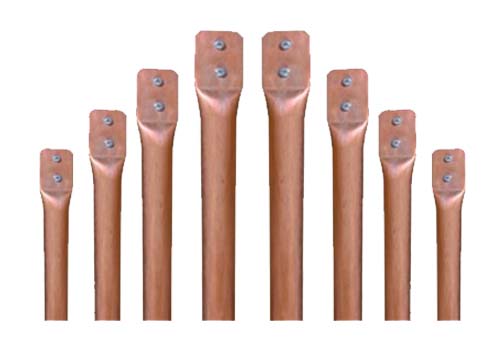

Copper Bonded Pipes

Copper Bonded Pipes are manufactured from ISI certified mild steel pipe, Copper is molecularly bonded to nickel sealed steel pipe to avoid copper to steel merging. Bonding is done after all fabrication and drilling, so that no steel part is exposed. Minimum 100 microns copper coating thickness suitable for sea- shore area. Employed in places where soil resistivity is very low, where GI Pipes cannot be used because of corrosive nature of soil.

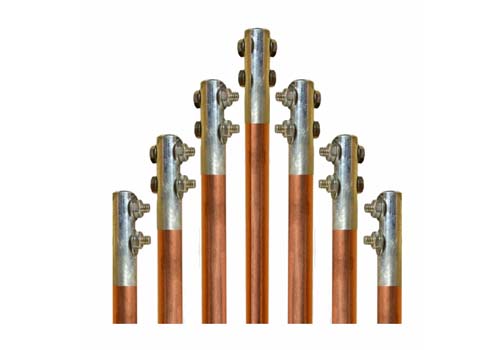

Copper Bonded Rod

Superior Quality Low Carbon , High Tensile strength steel rods are molecularly bonded with 99.9% pure electrolytic quality copper to nickel coated steel rods ensuring greater performance and double protection 250 microns copper as required under UL 467 and IEE Spec- life span is excellent in corrosive soil bonding is done after all fabrication and drilling, so that no steel part is exposed.

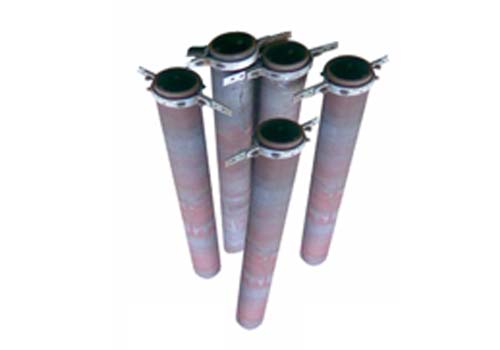

C.I ( Cast Iron )

Cast Iron Pipe Earthing Electrode is produced by casting process including accessories like flange, hot dip galvanized Clamp, Cast Iron and GI funnel with mesh. The electrode having 100 mm dia, 13 mm wall thickness 1.8 to 3 meter long with suitable clamp and funnel

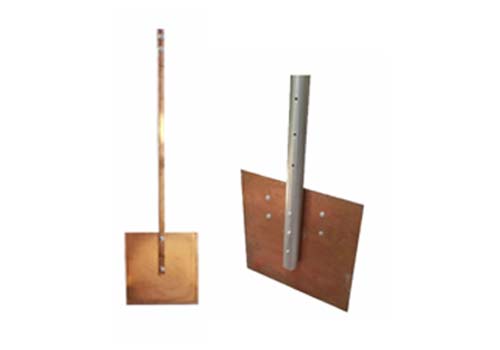

Copper Plate Earthing

Copper Plates are required in earth because copper has very low resistance and good conductor of electricity. The copper plate is used to pass the fault current with a minimum resitance of the circuit.

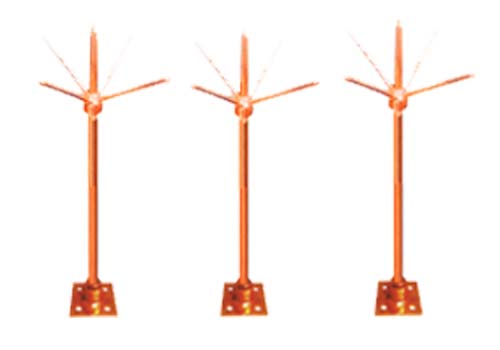

Conversonal Arresster

Pure copper / Copper Bonded / Stainless Steel Rods foxed on a Nylon insulated which is custom made by using Nylon-66 which provides good mechanical strength and proper insulation to the air terminals. The insulated base has a die- electric strength of 15000 KV as required.

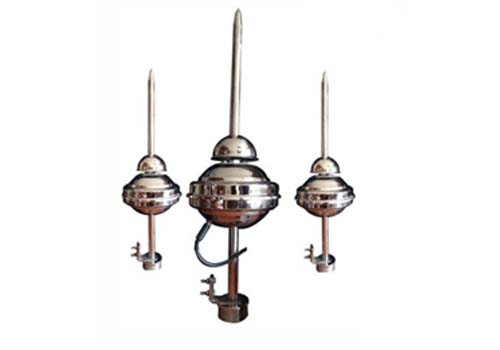

ESE Lightning Arrester

The ESE Lightning Arrester , also known as Active Lightning Arrester, provide an enhanced radius of protection,reducing the number of lightning arresters and down conductors needed for your building of solar project while still providing complete protection.Available in 53 meters , 75 meters , 107 meters radius.

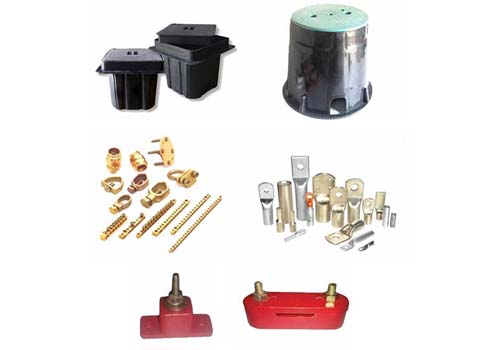

Earthing Accessories / Earth Pit Chambers

Earth Pit / Inspection Chambers are used in the final stage of Electrical Earthing in order to give an external covering from direct contact of any kind, having a weight holding capacity pf more than 1 ton. It can be used in areas with constant movement.

• Copper Wires and Flats
• All Type of Earthing Insulators
• Aluminium, Copper Ring and pin Type of Sockets
• All Type of earthing Clamps
• Cable Glands

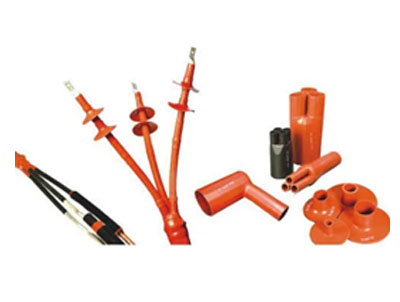

• Cable Joint kits
• Brass , SS Bolt Nut Accessories

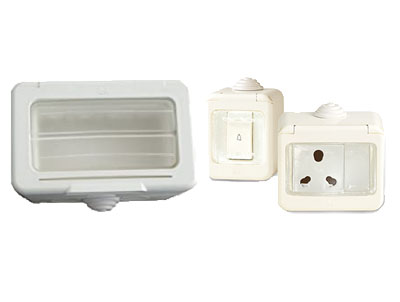

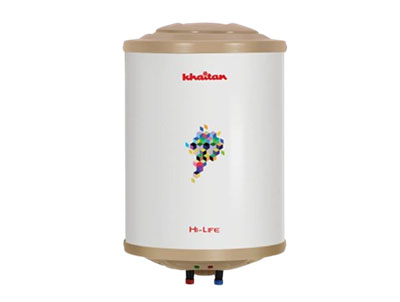

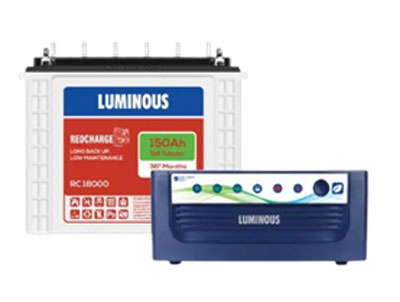

KHAITAN / LUMINOUS – Home Electricals

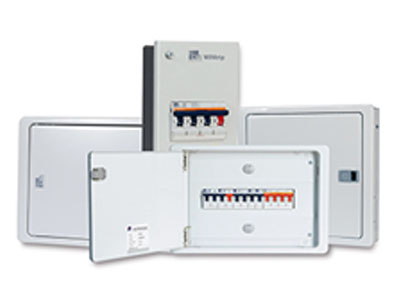

C & S ELECTRIC

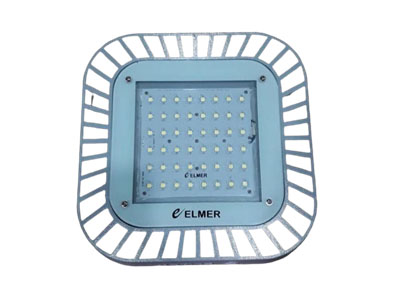

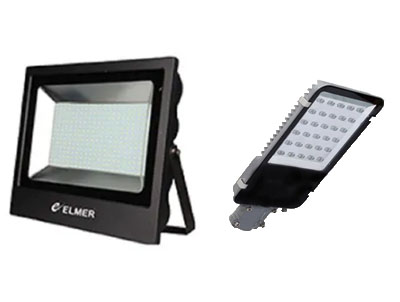

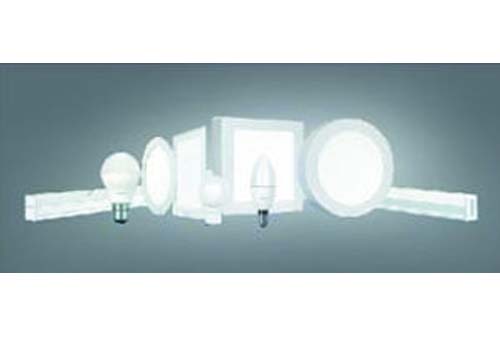

Elmer – Industrial lightings
